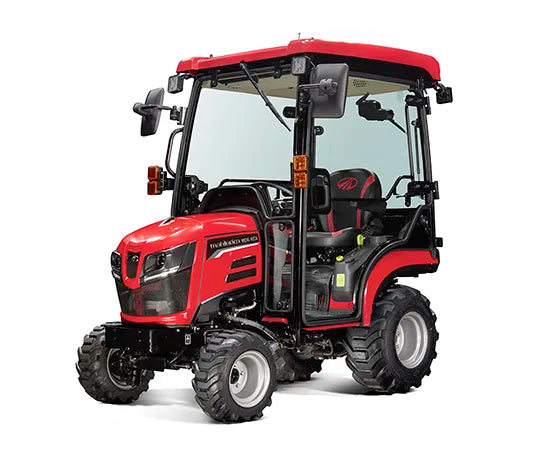

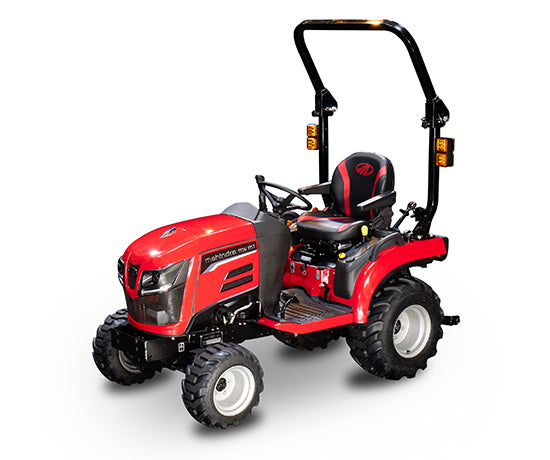

A SUB-COMPACT THAT IS WELL ABOVE ITS CLASS.
The 1100 series is the toughest, friendliest, and smartest tractors in the world. We challenge all weekend warriors to test their mettle. Novices will smile at an intuitive and informative cockpit. Phone app lovers will be pumped by its intelligent OJA software.
Mid Mower & Loader Options Available
ENGINE
Brand & Model Mitsubishi MVL3E3
Type Four-stroke, Naturally Aspirated, Indirect Injection, Water-cooled Diesel Engine
Cylinders 3 Cylinders
Engine HP (kW) @ RPM 20.1 (15.0) @ 2900
Compression Ratio 22:1
Displacement cubic inch3 (cc) 67.2 (1102)
Fuel Tank Capacity gallons (L) 6.6 (25)
ELECTRICAL
Battery Capacity 12 volt, 650 CCA
Alternator 12 volt, 55 A
TRANSMISSION
Type HST - 2 range
Number of Speeds Infinite
STEERING
Type Hydrostatic Power
BRAKES
Type Single Pedal
HYDRAULIC SYSTEM
Type Open center, full-live hydraulic with position control
Pump Output (gallons per minute) 11.2
Loader Lift Capacity (lb.) 792
3-pt Linkage CAT I with Check Chains
3 pt Lift Capacity (lb.) 24-inch from pin 770
Rear Auxiliary Remote Valves Optional Single or Dual
PTO
Type Live
PTO RPM (Rear) 540 @ 2837
PTO RPM (Mid) 2500 @ 2837
PTO HP (kW) 13.9 (10.4)
OPERATING WEIGHT
Total Operating Weight (lb.) 1620 OS / 1916 Cab
DIMENSIONS
Overall Length Inches (mm) 100.4 (2550)
Overall Width Inches (mm) 46.3 (1177)
Overall OS Height Inches (mm) 86.6 (2200)
Overall Cab Height Inches (mm) 80.5 (2044)
Turning Radius Min. Feet (meters) 7.2 (2.2)
TIRES SIZES & OPTIONS
Industrial (Front / Rear) 18 x 8.5 - 10 / 26 x 12 - 12
Turf (Front / Rear) 16 x 7.5 - 10 / 24 x 12 - 12
